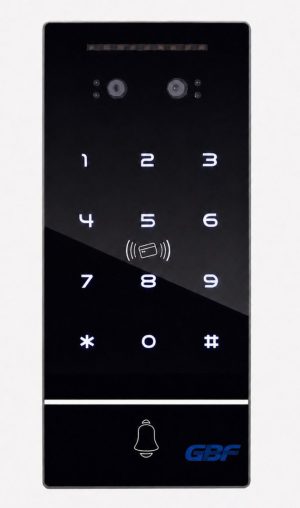

Description

Product Features:

• 1,010 Combined PIN and RFID Users (Output #1: 1,000 users, Output #2: 10 users)
• Built-in RFID Reader
• Blue Backlit Keypad
• 2 relay outputs NO/NC
• Push-to-Exit connection for each relay
• Each relay has programmable output time from 1~99 seconds or toggle
• Button audio feedback can be enabled or disabled
• Speaker output (for doorbell function)
• Tamper alarm activates built-in buzzer and triggers doorbell function
• Surface mounted

Product Specifications:

1. Epoxy sealed electronics.

2. Vandal resistant.

3. Aluminum Alloy Material.

4. RFID Frequency: EM 125KHz.

5. 2-6 digit length pin selectable during programming.

6. Operation Voltage: 12-24 VAC or VDC, 110mA.

7. Speaker Output 8ohm 0.5W.

8. 2 LED Status Indicators.

9. Weatherproof IP66.

10. Operation temperature: -30 – 70 degrees.

11. Dimensions: 76 X 120 X 22mm.
